Technical specifications and certifications

– Cv: 1.00
– Port size: 1/2 (F) NPT
– 5 WAYS / 2 positions
– Return Type: Detented
– 15 000 000 CYCLES
– Fluid: Compressed air (lubricated and oil free)
– Working Pressure: 22 to 145 PSI
– Working Temperature: 5 to 60 °C

Material(s):
– Body, End Caps: Anodized Aluminium
– Seals: Oil resistant rubber seals
– Spool: Aluminium
– Other Internal Parts: Stainless Steel, Brass, Aluminium

Features and benefits

– OPTIMA air control valves offer high flow performance and reliability
– Compact size
– High flow
– Quick response
– Highly reliable spool technology
– 3 and 5 WAYS, 2 and 3 positions
– Designed for in-line or bar manifolding

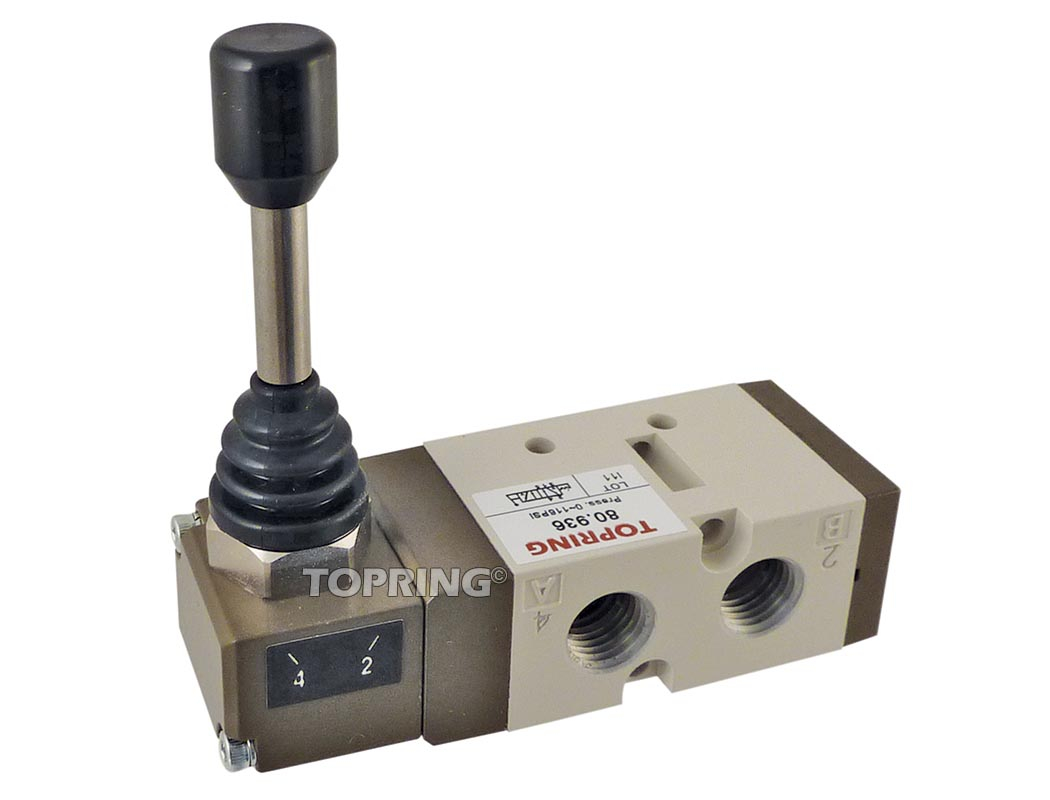

– Pushing the lever shifts the manual return valve. The valve remains in this positions until the lever is pulled back

Operation and installation

HOW IT WORKS
Pushing the lever shifts the manual return valve
The valve remains in this position until the lever is pulled back
