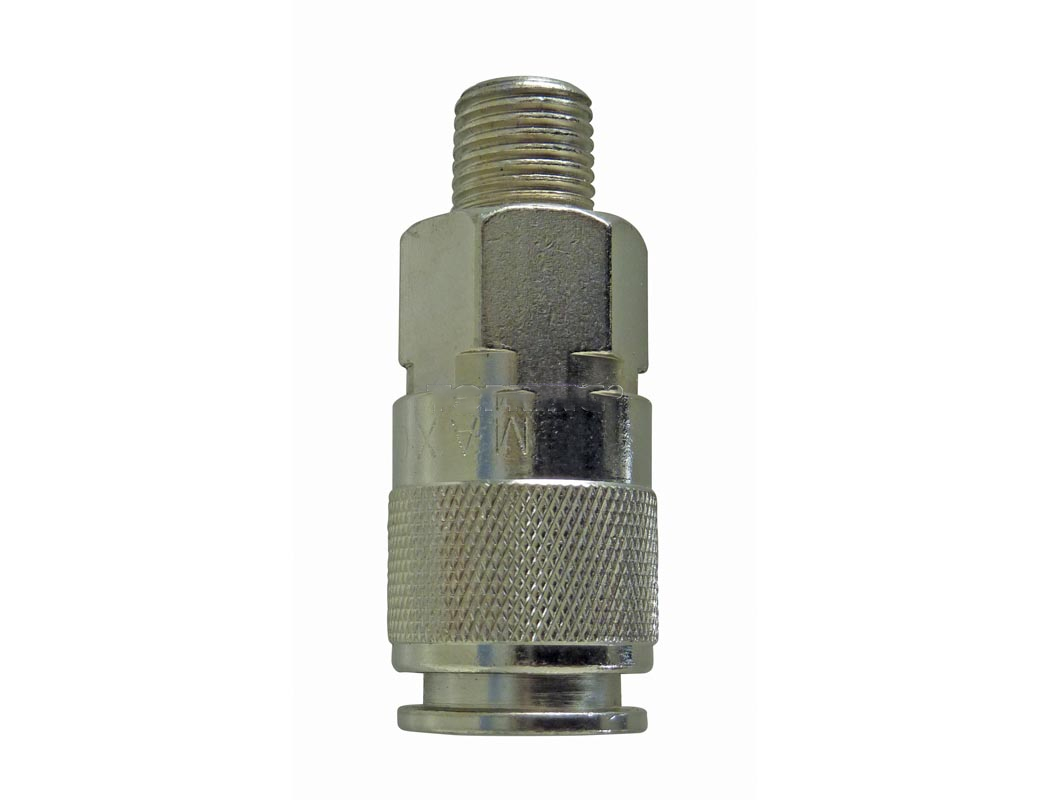

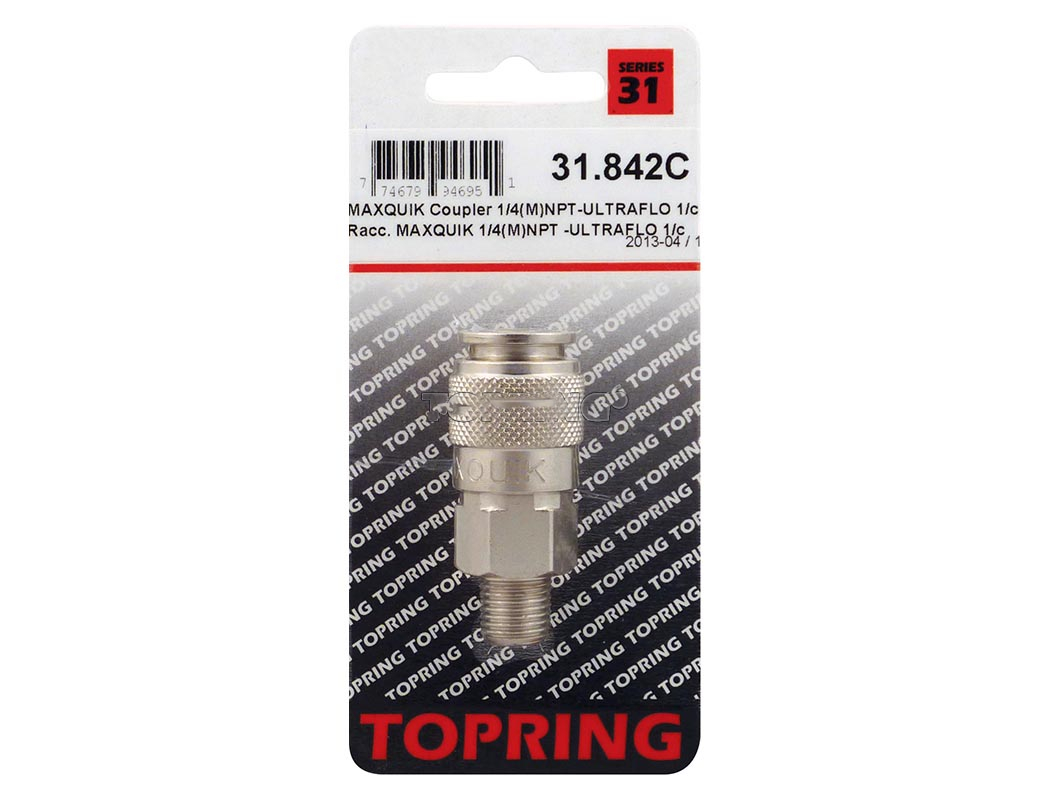

COUPLER AUTOMAX (ULTRAFLO) 1/4(M)NPT

Description

Technical specifications and certifications

• Thread: 1/4 (M) NPT
• Maximum Working Pressure: 200 PSI
• Working Temperature: -40 to 100 °C
• Airflow: 50 SCFM at 100 PSI inlet with 10 PSI pressure drop

Material(s):

• Body: Nickel plated steel
• Sleeve: Nickel plated steel
• Valve: Nickel plated steel
• Valve Spring: Zinc plated steel
• Locking Mechanism: Hardened nickel plated steel balls
• Seals: Nitrile rubber

Features and benefits

• Accepts European type plugs (CEJN 320)
• High-flow ULTRAFLO design provides superior tool performance
• Provides energy savings, increased productivity and superior tool efficiency
• Sleeve guard protects against accidental disconnection when the coupler is dragged across the floor or over obstructions
• Automatic push-to-connect operation
• Easy to connect, even under pressure
• Efficient and secure connection using ball locking mechanism

Applications

• All high-flow tool applications
• Automotive service shops, tire shops and paint shops (HVLP)
• Fastening and roofing industries
